A 14.5 g/L Strain Delivers 2.7 g/L at Harvest Once Escapers Take Over

A synthetic-biology team had a design library of engineered production strains and an obvious favourite: design D6, with the highest intrinsic titer at 14.5 g/L on the bench. The production target was 8 g/L. On paper D6 cleared it with room to spare. After propagating the model across a full seed-to-harvest train, the mean realised titer for D6 was 2.7 g/L — and the probability of meeting the 8 g/L target had fallen to 11%. The highest-titer design on the bench was one of the worst designs at scale.

The culprit is genetic instability. A high-titer strain carries a heavy metabolic burden, which gives any spontaneous loss-of-function mutant — an "escaper" that stops producing but grows faster — a large fitness advantage. Over the 35 generations from seed to harvest, those escapers sweep the population, and the realised titer collapses far below the intrinsic value a bench measurement reports. A design's productivity at scale is a race between its titer and its stability, and the bench number only measures the first.

Why a point estimate fails here

The deterministic approach measures intrinsic titer in a short bench run, compares it to the target, and ranks designs by that number. It implicitly assumes the producing strain stays the strain you inoculated. In a long fed-batch or a multi-stage seed train it does not: escaper frequency grows multiplicatively, so a tiny initial mutant load becomes a population-level takeover by harvest if the fitness advantage is high enough. Bench titer and genetic stability also trade off — the designs with the highest intrinsic titer carry the most burden and therefore the fastest escaper takeover — so ranking on titer alone systematically promotes the least stable designs.

The model treats each design as a population of fermentation runs. Intrinsic titer is LogNormal across runs (right-skewed). Escaper takeover follows logistic growth: an initial mutant load grows by a per-generation fitness advantage over 35 generations, and the producing fraction is what survives. A shared per-run quality factor (media lot, inoculum health, control loop) moves a run's titer ceiling and its escaper advantage together. A design is usable only if the realised titer meets 8 g/L and at least 85% of the population is still producing at harvest.

Instability splits realised titer below the design intrinsic value

For design D6 the deterministic plug-in is 14.5 g/L — the bench intrinsic value. The realised-titer distribution at harvest tells a different story: a mean of just 2.7 g/L, with 89% of runs landing below the 8 g/L target. The distribution is dragged hard left and bimodal — runs where the strain held produce near the intrinsic value, runs where escapers won collapse toward zero — and the bench number sits far out in the right tail that almost never occurs at scale.

Design selection: the highest-titer strain is not the most productive at harvest

Decomposing each design's usability into its titer hurdle and its stability hurdle reveals an inverted-U in design space:

• D1 — median titer 7.0 g/L, mean stability 99%: P(titer ok) 25%, P(stable) 100%, P(usable) 25%
• D2 — median titer 8.5 g/L, mean stability 97%: P(titer ok) 55%, P(stable) 97%, P(usable) 54%
• D3 — median titer 10.0 g/L, mean stability 87%: P(titer ok) 67%, P(stable) 76%, P(usable) 57%
• D4 — median titer 11.5 g/L, mean stability 67%: P(titer ok) 52%, P(stable) 41%, P(usable) 34%
• D5 — median titer 13.0 g/L, mean stability 42%: P(titer ok) 30%, P(stable) 15%, P(usable) 13%
• D6 — median titer 14.5 g/L, mean stability 20%: P(titer ok) 11%, P(stable) 3%, P(usable) 3%

The best design is D3, with a 57% usability probability — against just 3% for the highest-titer D6, a 54-percentage-point gap. As intrinsic titer climbs from D3 upward, the stability pass-rate falls off a cliff (76% at D3, 41% at D4, 15% at D5, 3% at D6), and it drags usability down with it. The most productive strain at harvest is a mid-library design, not the bench champion.

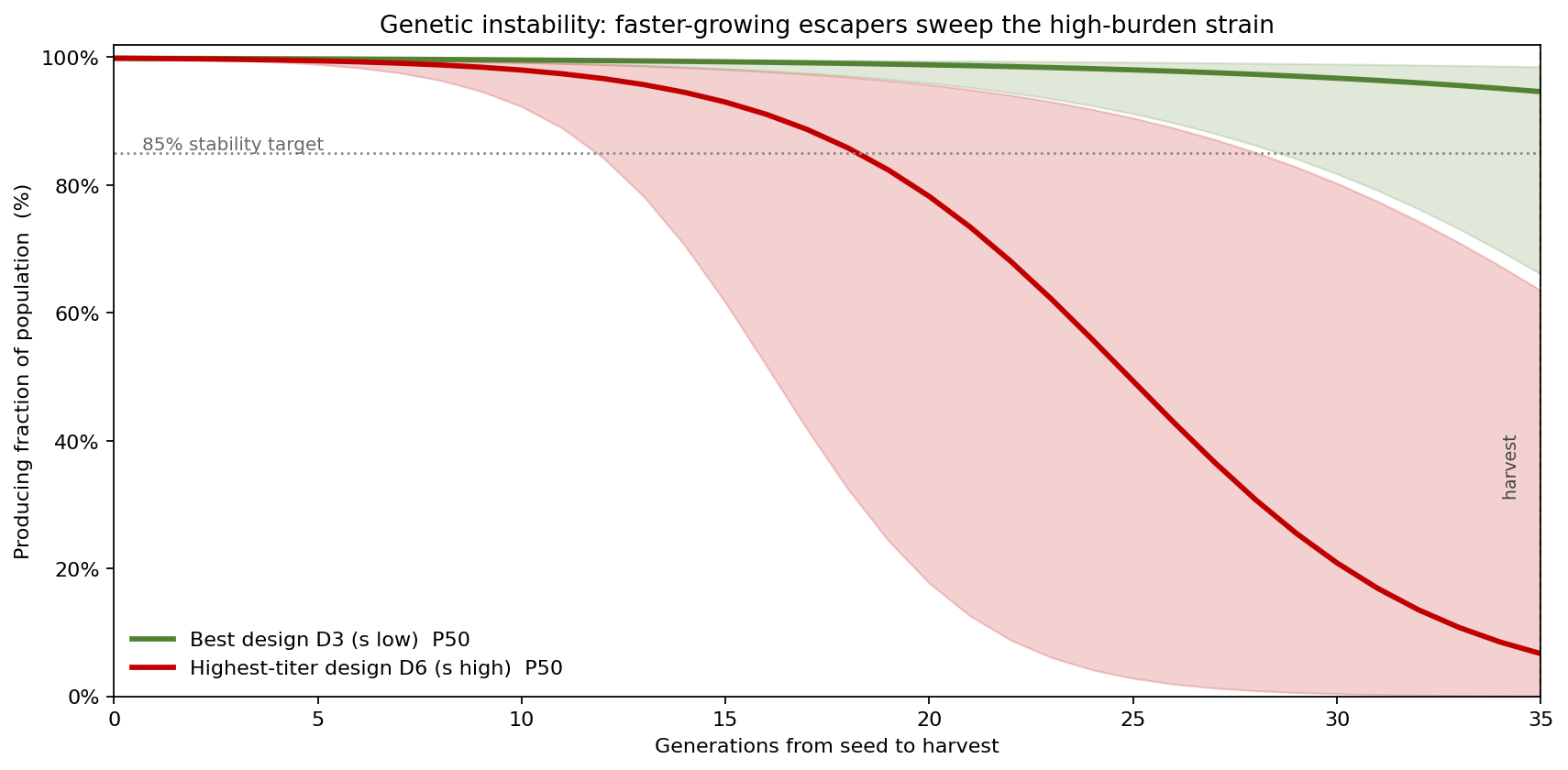

Genetic instability: faster-growing escapers sweep the high-burden strain

Tracking the producing fraction generation by generation shows why. The stable best design D3 holds a P50 of 95% producing at harvest (P10 still 66%, just below the stability target). The high-burden D6 collapses to a P50 of 7% producing — P10 of 0% — well before the 35-generation harvest point. Two designs that look one rung apart on the bench are on opposite sides of the 85% stability line at the end of the run.

What the model changed

• The lead design changed from D6 to D3. Ranking on bench titer had promoted the least stable strain; ranking on realised usability promoted a mid-library design whose 57% usability dwarfed D6's 3%.
• Cell-bank QC and seed-train length became design parameters, not afterthoughts. The tornado showed initial mutant load (cell-bank purity) swinging usability by tens of points and harvest generation count by roughly 20 — both controllable by process design, not just by strain choice.
• Strain ranking moved to a stability-discounted metric. Bench titer alone was retired as a selection criterion in favour of the joint P(meets titer AND stable) the simulation produces.

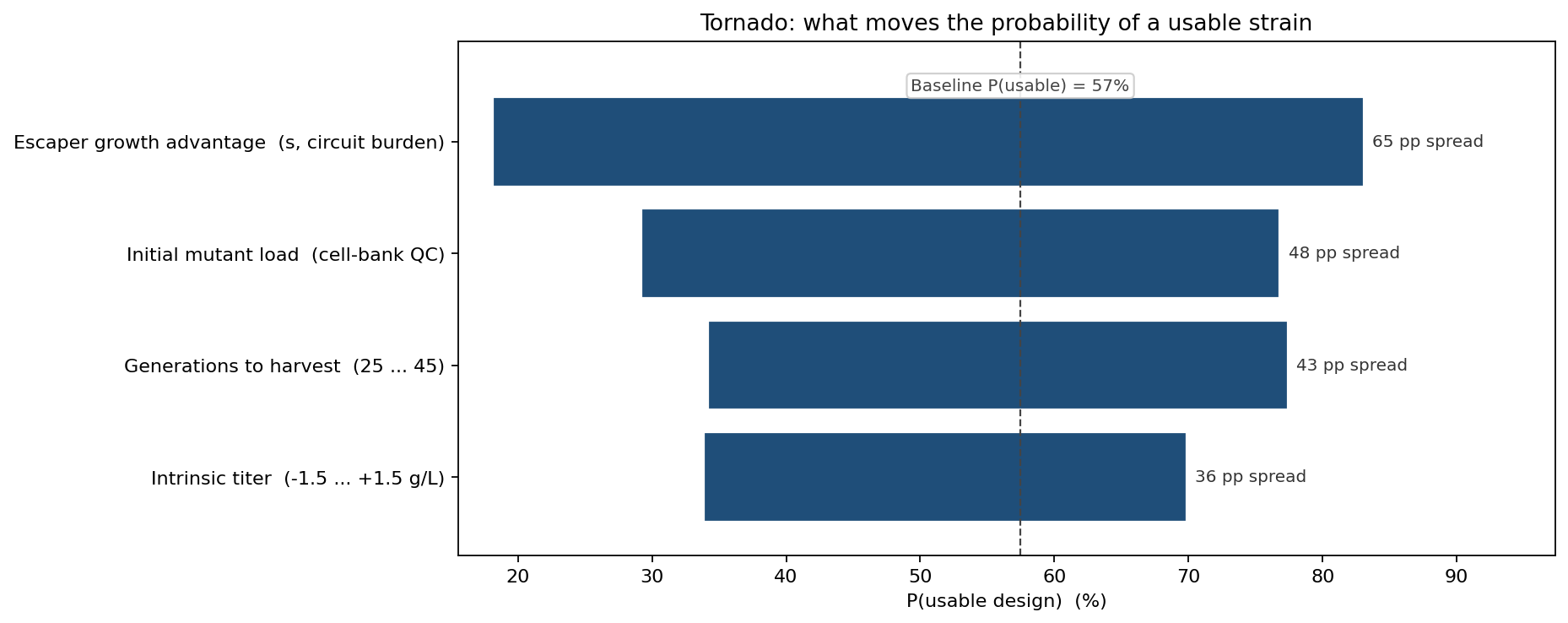

Around the chosen D3's baseline usability, the tornado ranks the levers: escaper growth advantage (circuit burden) swings usability from -39 to +26 points, initial mutant load (cell-bank QC) -28 to +19, generations to harvest -23 to +20, and intrinsic titer only -24 to +12. Stability and process levers dominate the realised outcome; raw intrinsic titer is the weakest of the four.

ModelRisk Functionality Used

• LogNormal intrinsic titer and a logistic escaper-takeover model over 35 generations, linked through a shared per-run quality factor so titer and instability are correlated within a run.
• Design-library sweep computing P(meets titer target) and P(remains stable) for every candidate, exposing the inverted-U where mid-library designs win.
• Joint usability logic requiring both the titer and stability criteria to hold in the same run, in place of ranking on bench titer alone.
• Generation-by-generation instability bands showing the producing-fraction decay path for competing designs against the stability target.
• Tornado sensitivity ranking escaper advantage, cell-bank QC, seed-train length, and intrinsic titer on the usable-design probability.

A 14.5 g/L bench strain that delivers 2.7 g/L at harvest is not a measurement error — it is a strain that lost the race against its own escapers. Simulating titer and stability together moved the lead design down the library, from a 3% usability champion on paper to a 57% usability winner at scale.
