A 12-year LEO Earth-observation mission carries a non-recurring engineering cost north of $280M and a launch bill that scales at roughly $7,500 per kilogram to a sun-synchronous orbit. Every additional kilogram of redundant hardware buys reliability — and costs hard cash twice, once to build and once to lift. The fundamental design question is therefore not "is the spacecraft reliable?" but "what is the probability the spacecraft completes its 12-year mission, and what is the cheapest redundancy architecture that hits the contractual 0.90 reliability floor?"

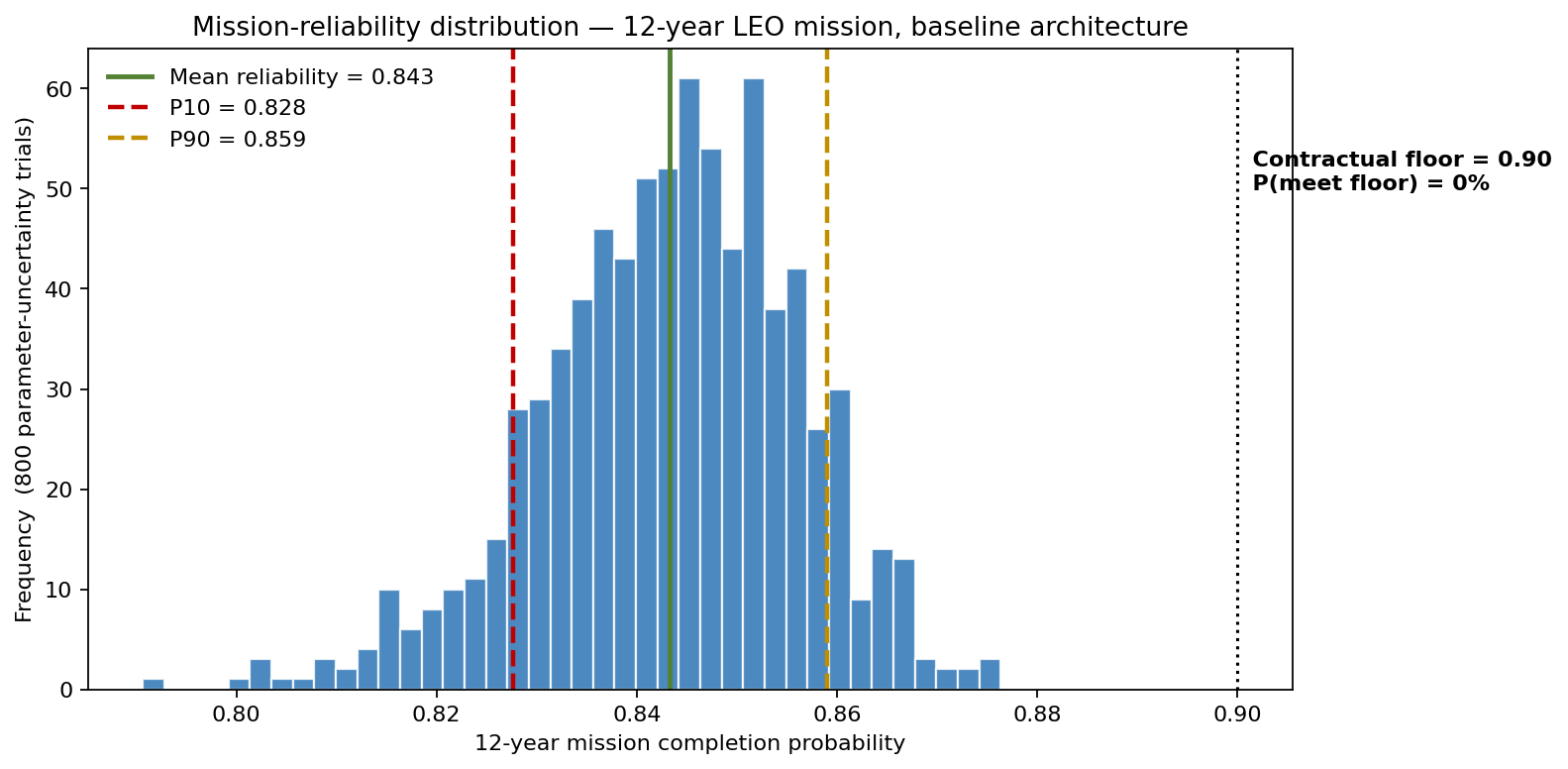

A commercial Earth-observation operator with three insurance-rated buses on contract rebuilt its bus-level reliability allocation in ModelRisk. The team's frustration with the traditional parts-count MIL-HDBK-217 approach was simple: it produced a single MTBF number per subsystem and a multiplicative "system reliability" that was either implausibly optimistic or implausibly pessimistic depending on the calibration assumptions, with no visibility into where the actual mission-loss probability lived. The Monte Carlo answer is the chart below: across 800 parameter-uncertainty trials of the full six-subsystem stack, the baseline single-string bus carries a mean 12-year completion probability of 0.844 (P10 0.828, P90 0.859) — and in not one trial does it clear the contractual 0.90 floor (P(meet) = 0%). The legacy parts-count workbook had signed off the same bus at 0.93.
A satellite subsystem in orbit does not fail at a constant hazard rate. Infant mortality dominates the first 90 days (manufacturing escapes, launch-induced damage), wear-out dominates the last 2–3 years (radiation dose to CMOS, propellant depletion, battery cycling), and the middle years carry a relatively flat residual rate. The team replaced the constant-λ exponential model with a per-subsystem Weibull with a shape parameter β fitted to on-orbit failure data from the operator's prior 14 buses:
For the propulsion subsystem, the "failure" is fuel exhaustion. Drag and station-keeping delta-v draws were modeled as LogNormal(μ = ln 28 m/s/yr, σ = 0.18), with the tank sized to 375 m/s total — which gives a fuel-depletion-age distribution (~0.98 survival to 12 years), not a single nominal lifetime.
Subsystem redundancy is the design lever. Cold-redundant pairs are switched in on failure; the pair survives if at least one element survives at age t. The unreliability of a 1-of-2 cold-redundant pair is not (1 − R)² (that's hot redundancy) — it is the convolution of two Weibull lifetimes, and ModelRisk computes it directly by sampling.
The legacy parts-count workbook reported a 12-year mission reliability of 0.93. The Weibull simulation reports something lower and, more importantly, distributed. Mean 12-year mission completion probability across modeled uncertainty in the Weibull shape and scale parameters themselves is 0.844, with a P10 of 0.828 and a P90 of 0.859. The probability of clearing the contractual 0.90 floor on the baseline single-string architecture is 0% — the entire distribution sits below the line, not at the comfortable 0.93 the parts-count number implied. The ~9-point gap is the compounding penalty the deterministic constant-rate model never shows: six series subsystems, each individually ~0.96–0.98 over the mission, but whose wear-out-dominated tails (battery β = 2.5, reaction wheel β = 1.8) and propellant depletion multiply together into a system reliability that lands well short of the optimistic parts-count figure.
Sensitivity analysis on the subsystem contributions to mission-failure probability:
Against a baseline mission-failure probability of 15.3%, the battery string is the single largest contributor — a 3.6-percentage-point swing — followed by propulsion (propellant depletion) at 3.1 pp and the reaction wheel assembly at 2.6 pp. "Other electronics" and the transponder tie at 1.7 pp each, with the star tracker at 1.6 pp. This ranking is the redundancy-investment work plan: the battery and reaction wheel are the two wear-out items worth cold-sparing, while propulsion — second on the list but not a candidate for a redundant tank — is bought down by the 375 m/s propellant margin instead.
The team priced three candidate redundancy architectures against the same launch-mass and unit-cost budget:
Each architecture was simulated for 12-year mission completion, then total program cost computed as NRE + recurring + launch mass × $7,500/kg.

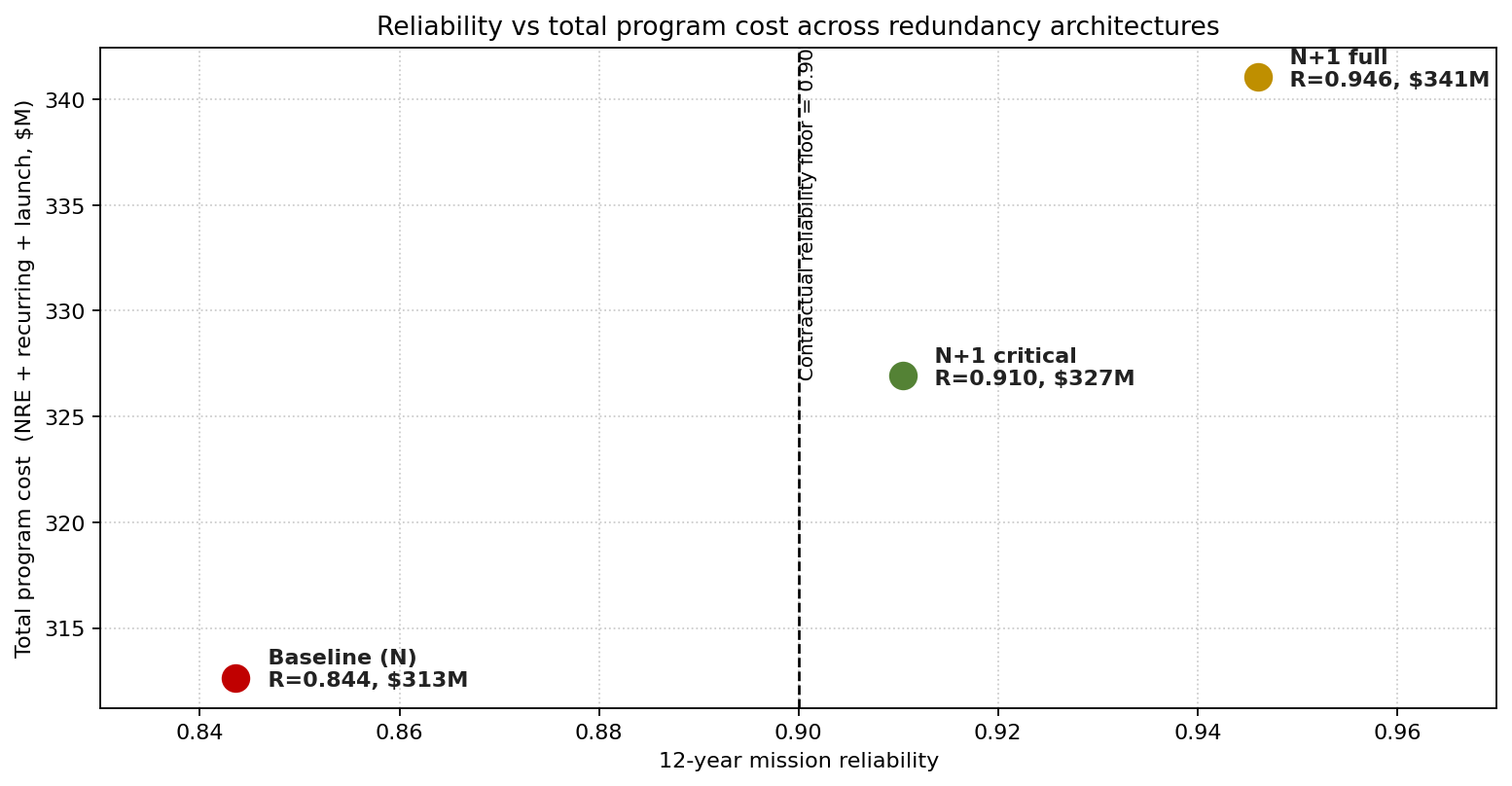

The deterministic recommendation was N+1 full because "more redundancy is always better." The probabilistic answer prices the decision exactly: cold-redundant pairs lift mission reliability from 0.844 (baseline, $312.6M) to 0.910 (N+1 critical, $326.9M) to 0.946 (N+1 full, $341.0M) — each step roughly a $14M program-cost increment. The crucial finding is that N+1 critical — redundant battery and reaction wheel only — is the cheapest architecture that clears the 0.90 floor, at $326.9M (a $14.3M premium over the non-compliant baseline). N+1 full buys a further 3.6 points of reliability (0.946) for another $14.1M; whether that margin is worth it depends on the insurance-premium reduction it unlocks, but it is no longer required to meet the contract. The baseline, despite the parts-count sign-off at 0.93, is simply not deliverable.
Reliability is not the product of point estimates. It is the joint distribution of subsystem lifetimes, the shape parameters of each Weibull, and the convolution arithmetic of every cold-redundant pair. Monte Carlo simulation in ModelRisk makes that joint distribution visible — and once it is visible, "how much reliability does each redundancy dollar actually buy, and is the contractual floor even reachable?" becomes a calculation, not an argument.
