ModelRisk Optimizer: optimisation under uncertainty in Excel
Find the best decision. See the risk it carries.
ModelRisk Optimizer searches your Excel model for the decisions that give the best simulated result, inside the limits you set. It simulates every plan it tries, so “best” can mean the highest profit in a bad year or the smallest chance of a loss.
-
What you control
The cells you may change, with their bounds: amounts, whole numbers, choices from a list, yes or no.
B15:B20 Integer 0…8Fund project? Binary -
What “best” means
A statistic of a simulated result, to maximise, minimise or bring to a goal.
Maximise P10 profitMinimise mean cost -
What must hold
Hard or soft limits on any result. ModelRisk then simulates each plan it tries and keeps the best.
P95 toxicity ≤ 34Chance of a loss ≤ 10%
Try it: ten fields and one uncertain season
The Farm Parcels example that comes with the OptimizerHow much revenue can you expect for the risk you accept?
A farm plants ten whole fields with five crops, from steady wheat to valuable but volatile vineyard. The season’s weather moves every crop together. Set how far the season’s revenue may swing, and see the best plan for that limit.
With a swing of up to $7k, the best plan expects $46.5k a season: 2 wheat, 1 maize, 4 soybean, 2 sunflower and 1 vineyard.
All seven plans as a table
| Swing up to | Expected | 1 in 10 below | 1 in 10 above | Wheat | Maize | Soybean | Sunflower | Vineyard |
|---|---|---|---|---|---|---|---|---|
| $3k | $26.2k | $22.7k | $29.7k | 6 | 3 | 1 | 0 | 0 |
| $5k | $37.0k | $30.6k | $43.4k | 3 | 2 | 4 | 1 | 0 |
| $7k | $46.5k | $37.5k | $55.5k | 2 | 1 | 4 | 2 | 1 |
| $9k | $55.6k | $44.1k | $67.1k | 0 | 1 | 5 | 2 | 2 |
| $11k | $62.7k | $48.7k | $76.7k | 0 | 1 | 2 | 4 | 3 |
| $13k | $69.6k | $53.1k | $86.1k | 0 | 0 | 1 | 5 | 4 |
| $15k | $75.8k | $56.6k | $95.0k | 0 | 0 | 0 | 4 | 6 |
Excel’s Solver sees one average season, so it would plant 4 sunflower and 6 vineyard and stop there, at the top of the curve. It can’t tell you that plan’s revenue swings by $15k a season, or find a steadier one. ModelRisk Optimizer simulates every plan it tries, so it can keep the swing inside your limit.
Revenue in thousands of dollars per season. Each point is the exact optimum of the example’s model for that limit, as listed in the workbook; in ModelRisk you trace the same curve with Efficient Frontier Analysis.
Solver sees one future. The Optimizer sees the range.
Excel’s Solver optimises a model with fixed inputs. When the inputs are uncertain, the plan that looks best on the average case can carry risks nobody chose. ModelRisk runs a Monte Carlo simulation for every plan it tries, so you can ask for what you actually want.
Set it up and run it in one window
Open it from the ModelRisk ribbon. The set-up is saved inside the workbook, so it travels with the file. These are the real windows, on the Desalination example that comes with the Optimizer.

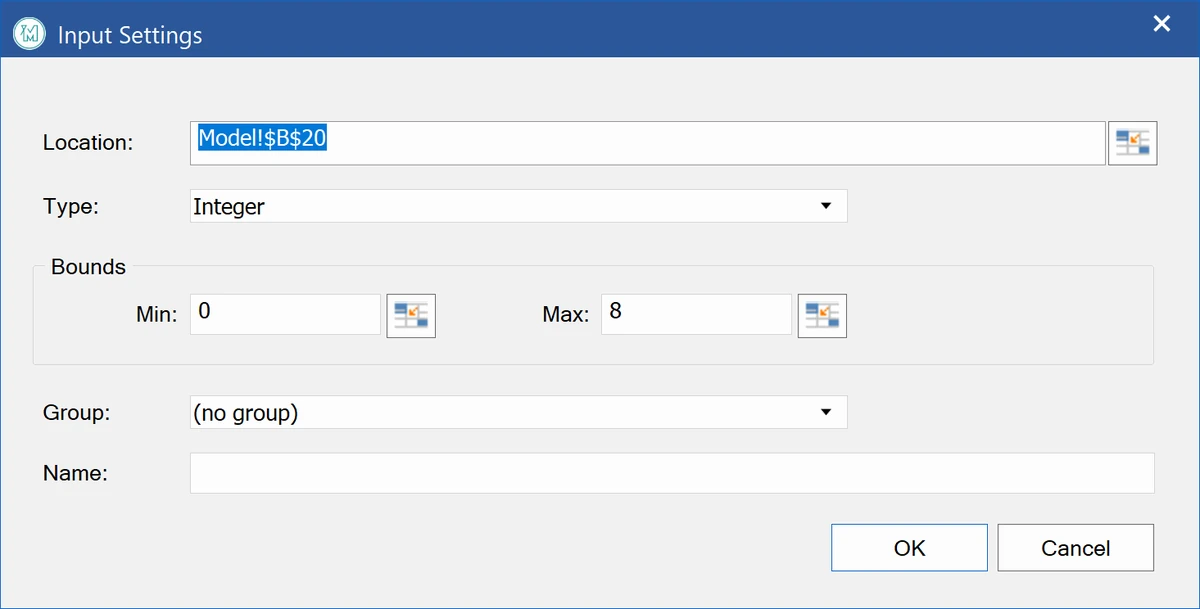

Minimise mean daily cost Dose per train: 0…8 P95 toxicity ≤ 34Choose the cells you control
Add each decision cell from the sheet and give it a type and bounds. Here each train’s dose is a whole number from 0 to 8.

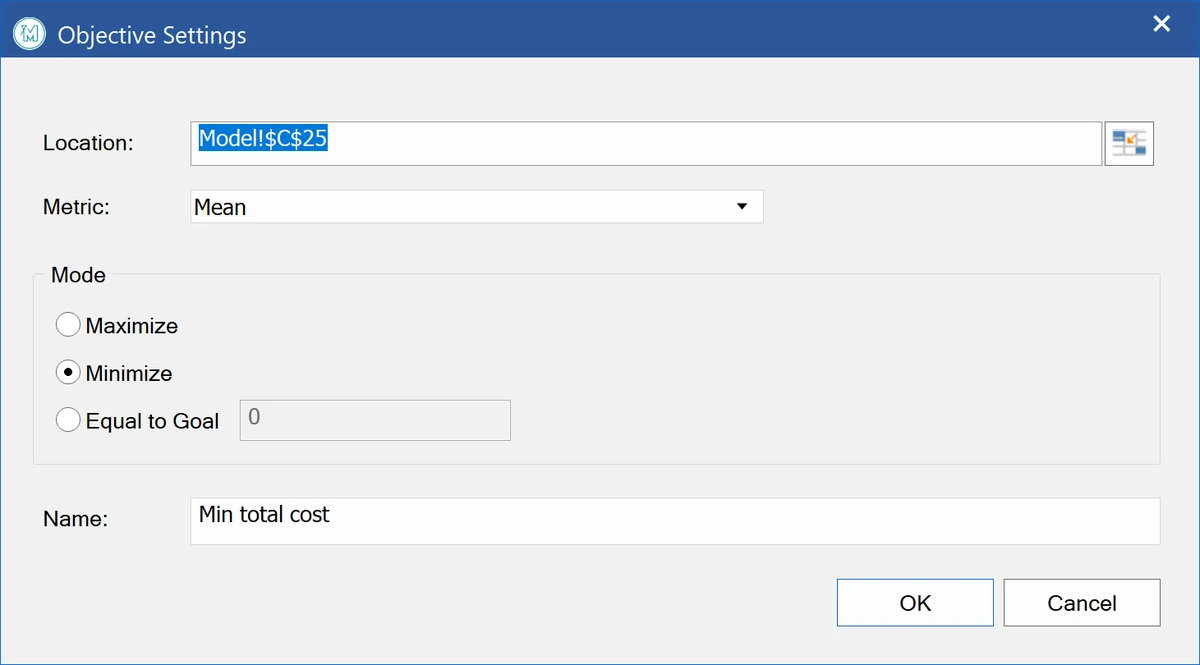

Say what “best” means
Pick an output cell, a statistic of its simulated distribution, and whether to maximise it, minimise it or bring it to a goal. Here: minimise the mean daily cost.

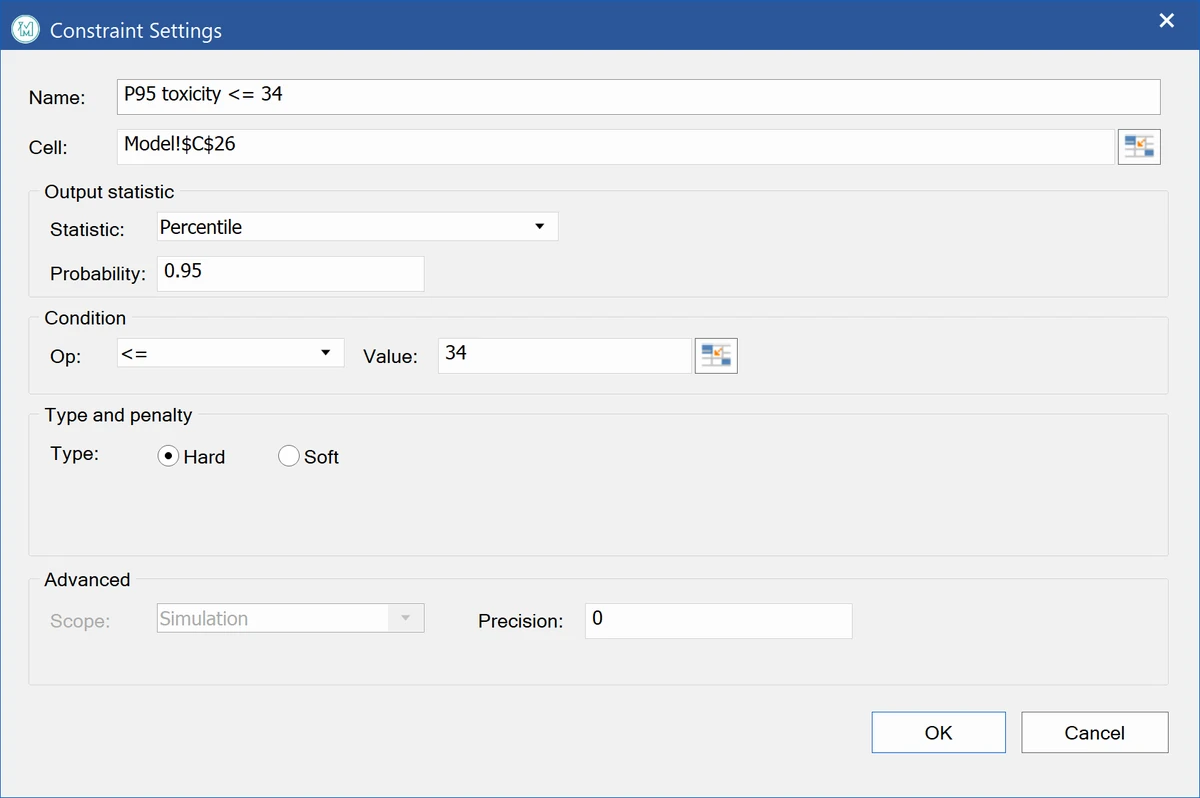

Set the limits that must hold
A constraint compares a statistic of an output with a bound. A hard one rejects any plan that breaks it; a soft one adds a weighted penalty instead. Here: the 95th percentile of brine toxicity must stay at or below 34.
Press Start and read the answer

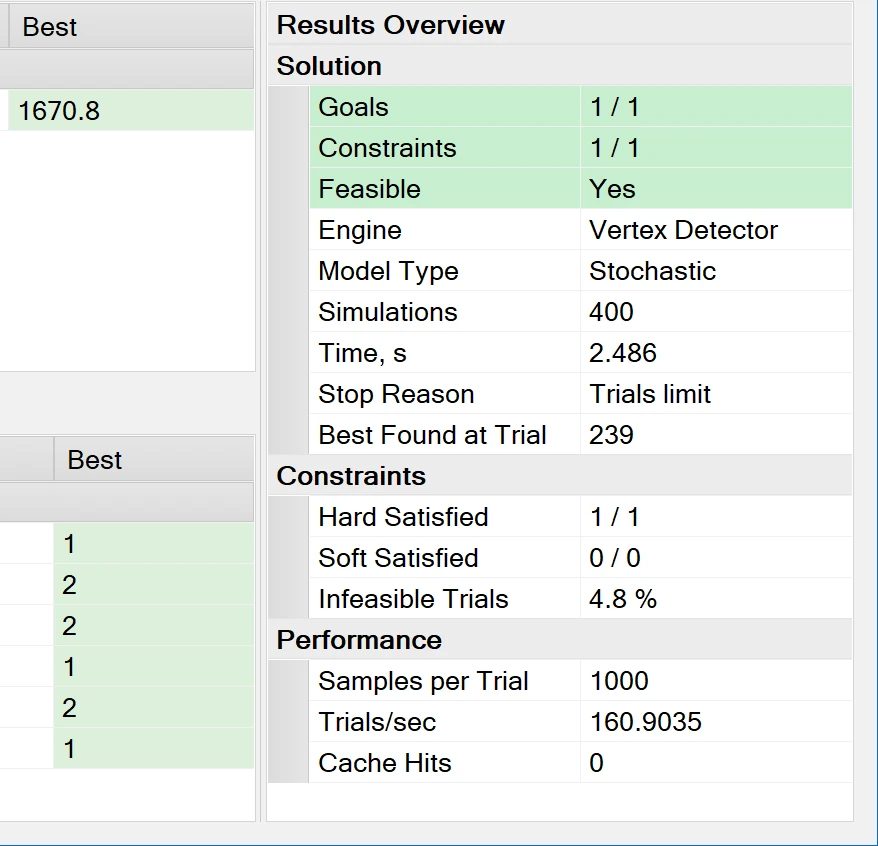

Method Auto picks the search engine from the model’s structure. For whole-number doses under a percentile limit it chose the Vertex Detector. The Results Overview shows that every goal and constraint is met, and the Best column holds the plan. Apply Solution writes it to the sheet.
See how it got there

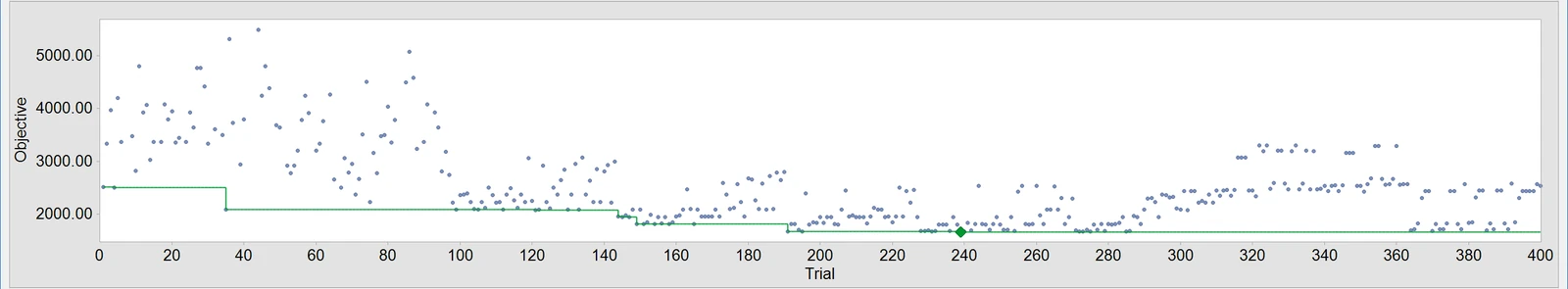

Solving History plots every plan tried (blue dots) and the best so far (green line), above a journal of each trial’s decisions and result. Insert Chart and Report put it in your workbook.
See what a looser limit buys

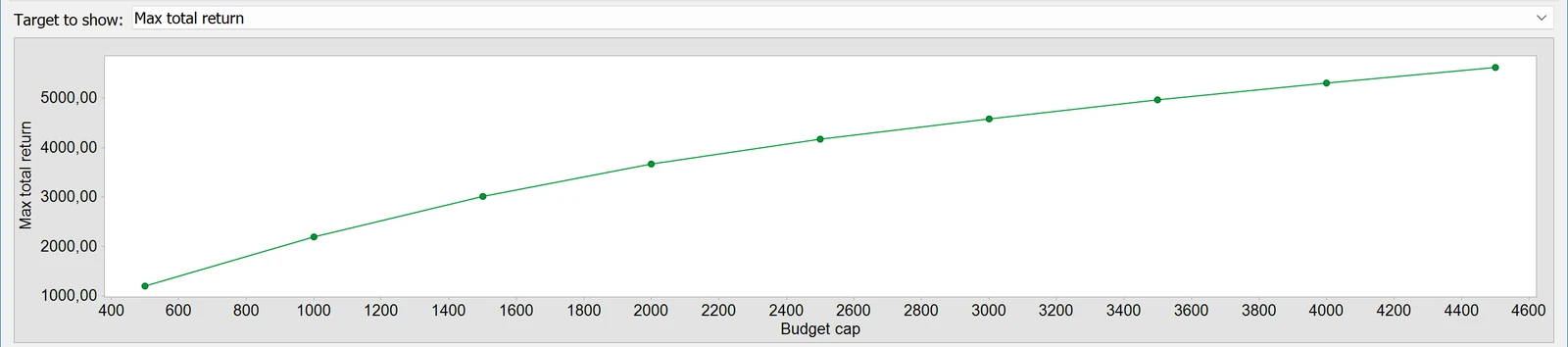

Efficient Frontier Analysis re-runs the optimisation across a range of one limit and plots the best result at each, like the farm above. Shown here: the Wealth Fund example, the best total return at each budget cap.
The decisions you face, in the terms you think in
Real decisions come in whole units, under budgets, with limits on what can go wrong. The Optimizer lets you write each of those down directly, on any cell of your model.
Objectives
Maximise, minimise or hit a goal on any of 18 statistics of a simulated result, plus Six Sigma measures. Several objectives combine into one score.
Decisions
Continuous, whole-number, stepped, listed or yes/no cells. Groups keep a set of decisions within a budget, in a sequence or assigned to slots.
Constraints
Limits on any statistic of any output, hard or soft with a penalty weight, plus formula constraints that must be TRUE.
Engines
Method Auto reads the model’s structure and picks the engine. You can also choose one yourself.
- Efficient frontier: re-optimises across a range of one limit
- Scenarios: several set-ups per workbook, saved with it
- Stopping rules: tolerance, stagnation, trial and time limits, or your own formula
- Repeatable runs: set a seed and get the same answer again
- VBA macros: at the start, the end, and before or after each trial
- 26 example workbooks: one for each engine and feature, ready to run
Questions it answers
Wherever a plan has to be chosen before the uncertainty plays out, and some outcomes are worse than others.
Project portfolios
Which projects to fund within the capital budget, for the highest expected value with a cap on the chance of missing the return target.
- Decide
- Yes or no per project
- Limit
- Probability of a shortfall
Contingency and reserves
The smallest reserve that still meets your confidence target across several uncertain cost lines.
How to calculate cost contingency- Decide
- Reserve per cost line
- Limit
- Percentile of the overrun
Inventory and capacity
Order quantities or capacity that balance the risk of running out against the cost of holding too much.
- Decide
- Whole units
- Limit
- Chance of a stock-out
Insurance and finance
Capital or limits across lines of business, with a cap on the tail risk you carry.
- Decide
- Allocation per line
- Limit
- CVaR of the loss
Questions from the 26 example workbooks
- Cold-chain vaccine depotsHow many coolers and backup batteries per depot keep temperature excursions to essentially zero?90th percentile limit
- Stadium gatesHow many lanes to open at each gate so the crowd clears within 8 minutes on 95% of nights?95th percentile limit
- Radiotherapy planWhich beam weights maximise the tumour dose reached even on the worst 10% of days, while the nearby organ stays within tolerance 95% of the time?P10 objective, probability limit
- Wastewater aerationHow many blower steps per basin minimise the worst-case energy bill while keeping oxygen safe?CVaR objective
- Wind farm curtailmentHow much to curtail each cluster to steady grid frequency, giving up as little revenue as possible?Standard deviation limit
- Micro-grid dispatchHow much power to draw from each source for the best expected margin within feeder and emissions limits?Mean objective, two limits
Fast enough to simulate every plan
An optimisation runs a full simulation for every plan it tries, often hundreds of them. In the Optimizer the Use Turbo Simulation box is ticked by default, and Turbo is included in every ModelRisk licence.
From the Results Overview above: 400 simulations of 1,000 samples each, so 400,000 recalculations of the model in one optimisation.
- Turbo analyses the workbook once, compiles only the cells that change between iterations and runs them on every processor core.
- Before a workbook’s first Turbo run, ModelRisk offers to check that Turbo reproduces the classic engine on it.
- You can make Turbo the default for one workbook, or for every new model.
Simulation phase only: 89 models from our internal test library, same workbook, 1,000 iterations, Turbo against ModelRisk’s classic engine. Excludes the one-time model analysis and opening the workbook. The gain depends on the model’s structure. How Turbo works
Optimisation comes with every licence
In @RISK, RISKOptimizer comes only with the Industrial edition. Every ModelRisk licence includes the Optimizer and Turbo, and the converter brings @RISK models, RISKOptimizer models included, across in a couple of clicks.
@RISK price from Lumivero’s web shop, retrieved October 2026. ModelRisk prices are on our pricing page, before volume and multi-year discounts.
Bring your models across
The free converter rewrites @RISK functions as ModelRisk ones and brings RISKOptimizer models across as well. Converted models stay ordinary Excel workbooks. Switching from @RISK · ModelRisk vs Crystal Ball
Compare it yourself
Our ten optimisation test models come in ModelRisk, @RISK and Crystal Ball versions, so you can run them in each product. Download the test models
Try it in three steps
Release details are in the ModelRisk release notes.
Install the trial
Fifteen days and fully functional. You can keep your current tools installed alongside it.
Download free 15-day trialOpen a model and press Start
Choose ModelRisk → Optimizer on the ribbon. The example workbooks open with their set-up saved, so you can watch one run first.
Send us your model
Have an optimisation in RISKOptimizer or Solver you want to move? Send it to us and we’ll help you set it up.
Contact us
Common questions
What is ModelRisk Optimizer?
ModelRisk Optimizer is the optimisation engine built into ModelRisk, Vose Software’s Monte Carlo simulation add-in for Excel. You choose the cells you control, define the objective on a simulated output (for example the mean NPV or the P90 cost) and set constraints; ModelRisk searches for the decisions that give the best simulated result. It is included in every ModelRisk licence at no extra cost.
Why optimise with simulation rather than Excel Solver?
Solver optimises a model with fixed inputs. When inputs are uncertain, the plan that is best on the average case can be a poor plan across the range of outcomes. Optimising on the simulated output lets you define best in risk terms, such as the highest median NPV with at most a 10% chance of a loss.
What can the objective be?
Any of 18 statistics of an output’s simulated distribution: the value, mean, median, mode, minimum, maximum, range, standard deviation, variance, semi-standard deviation, skewness, kurtosis, a percentile, the probability of being above, below or between values, and the lower or upper CVaR, plus Six Sigma measures. Each objective is maximised, minimised or brought to a goal, and several objectives combine into one score.
What kinds of decisions can it handle?
Continuous, integer, stepped, listed and yes/no (binary) decision cells, with bounds that can be numbers or cell references. Groups optimise several decisions together: within a budget, as a sequence with precedence rules, or assigned to a number of slots.
Can I see the trade-off between risk and return?
Yes. Efficient Frontier Analysis takes one hard constraint, sweeps its bound across a range you choose and runs a full optimisation at each point. You get a chart and a table of the best result at each bound, which you can insert into Excel or build into a report.
How fast is ModelRisk Optimizer?
Turbo analyses the workbook once, compiles only the cells that change between iterations and runs them on every processor core. Across 89 models from our internal test library, the simulation phase ran a median of about 200 times faster than ModelRisk’s classic engine (same workbook, 1,000 iterations, excluding the one-time model analysis); the gain depends on the model. The Optimizer runs many simulations, so it uses Turbo by default.
Is the optimisation saved with the workbook?
Yes. The whole set-up is stored in a hidden sheet inside the workbook, so it travels with the file, and one workbook can hold several named scenarios.
Can I switch from RISKOptimizer or Crystal Ball’s optimiser?
Yes. ModelRisk converts @RISK and Crystal Ball models free of charge, and the converter brings RISKOptimizer models across as well. ModelRisk costs at most €1,550 per user per year with the Optimizer included. In @RISK, RISKOptimizer comes with the Industrial edition, listed at €3,500 per year in Lumivero’s web shop (retrieved October 2026).
Try it on a decision you know
Download the free 15-day trial, open an example or one of your own models, and press Start. If you’d rather see it first, we’ll walk you through it on a call.
